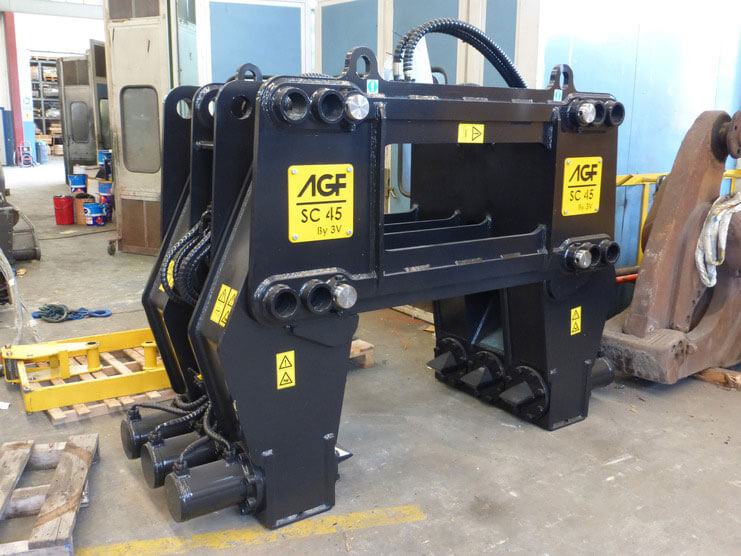

Trevi Benne Diaphragms Pile Crusher SC Series

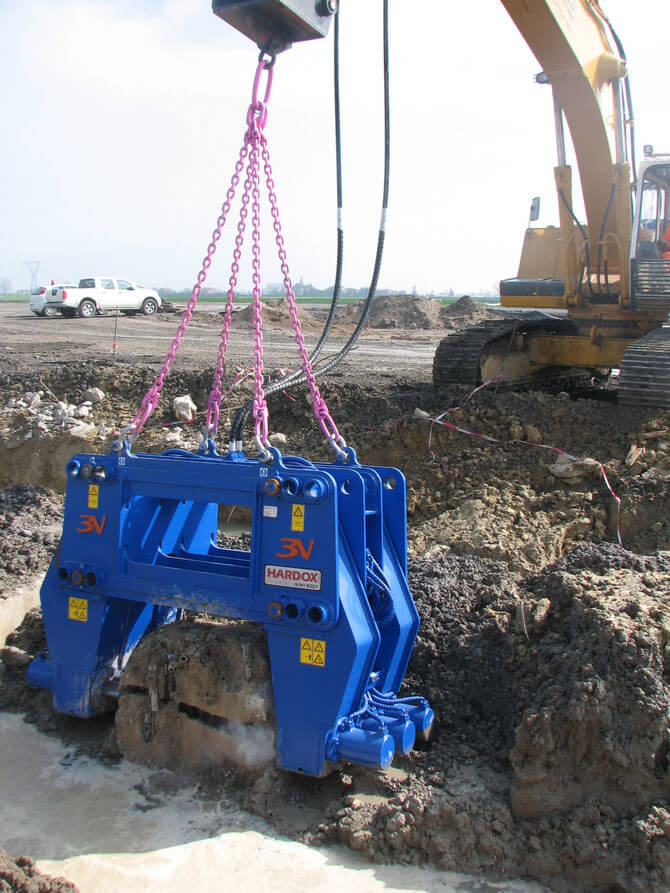

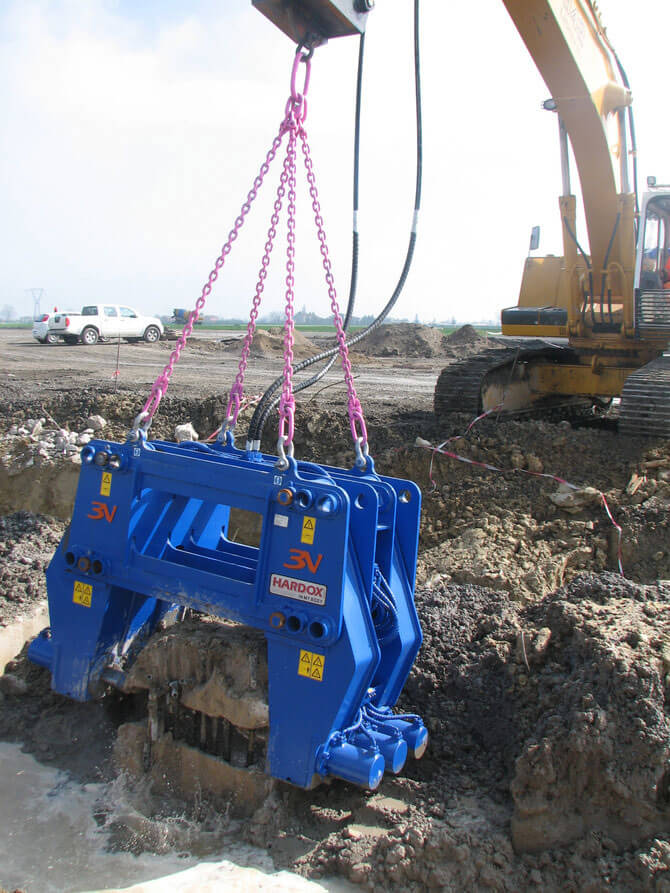

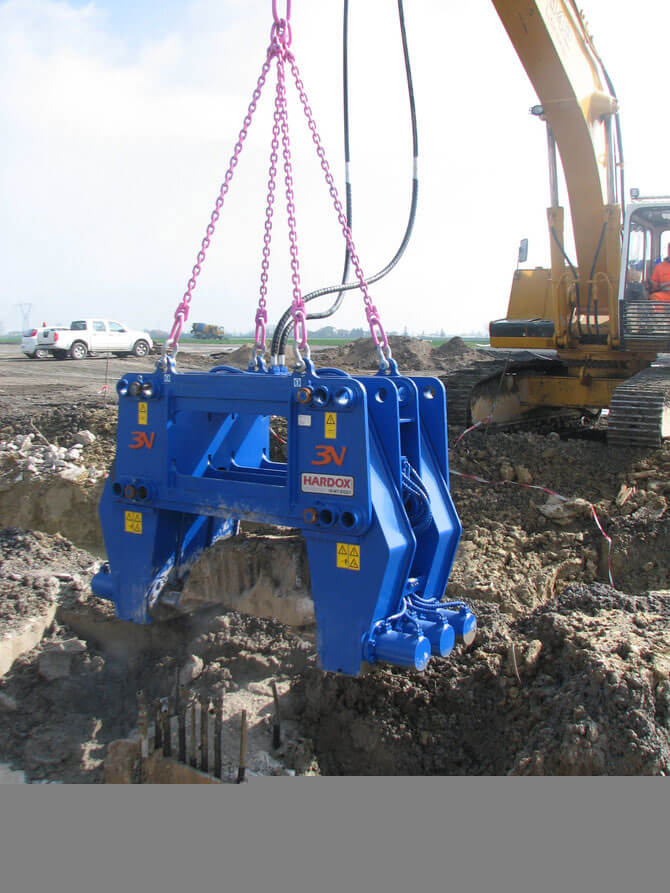

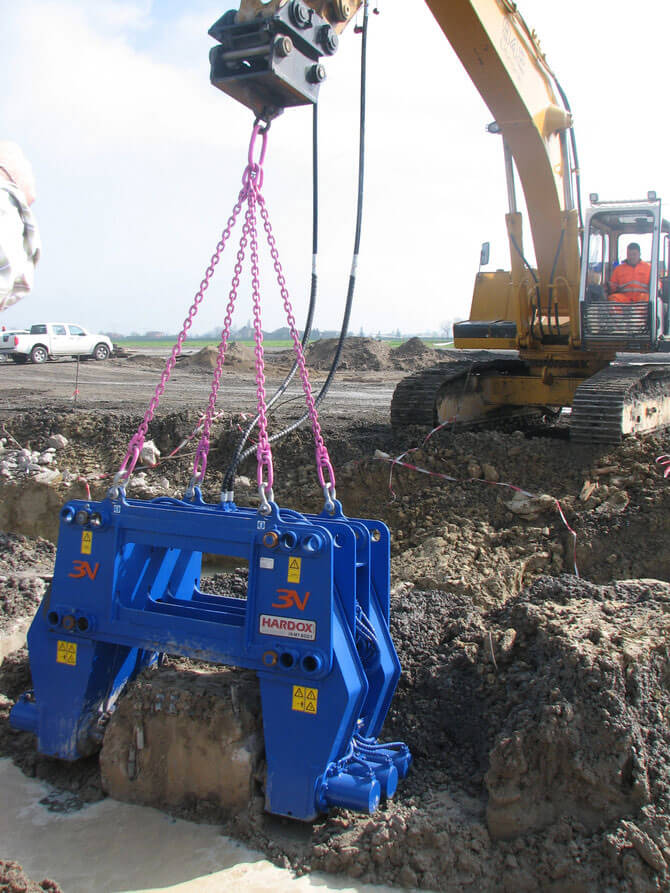

Equipment created for the crushing of reinforced concrete diaphragms. The frame is adjustable in size depending on the cement barrier to be demolished.
- 2 Models
- Weights: from 4.650 to 5.300 kg
- Excavator Weights: from 30 to 70 ton
- Openings: from 1.000 to 1.500 mm
- Rotation: yes
- Six opposing cylinders release a horizontal pressure along a flat section, breaking up the concrete leaving the inner reinforcing rebar intact and clean
- The frame is adjustable in width, from 1.000 to 1.500 mm, depending on the thickness of the diaphragm to be demolished
- They can be installed on different equipment (excavators, cranes, telescopic arms, etc.) thanks to the use of lifting chains
- Also available with continuous hydraulic rotation
