Blue Diamond Power Rakes

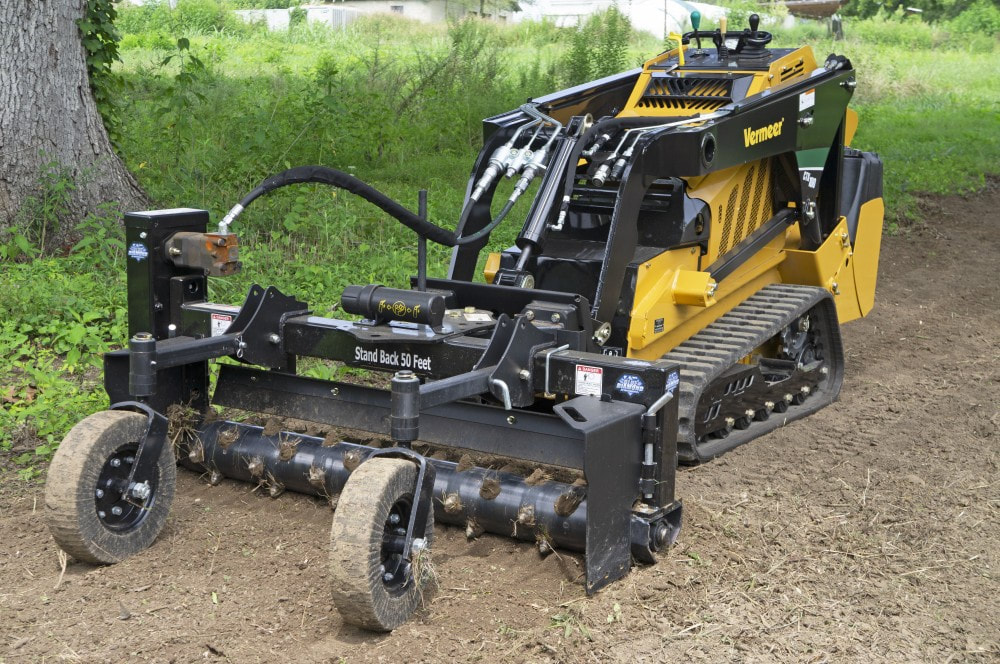

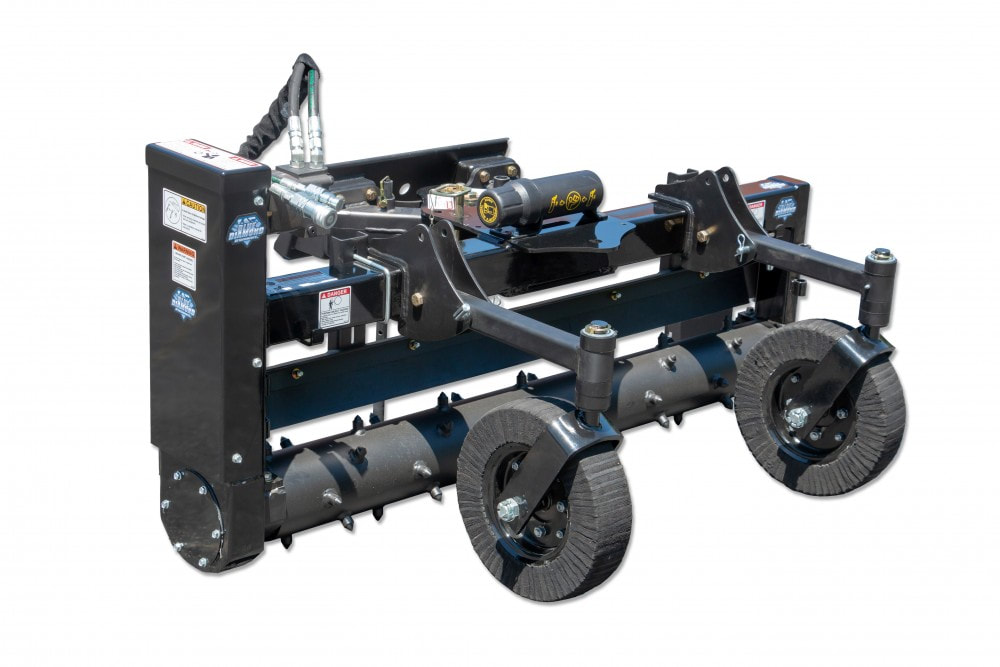

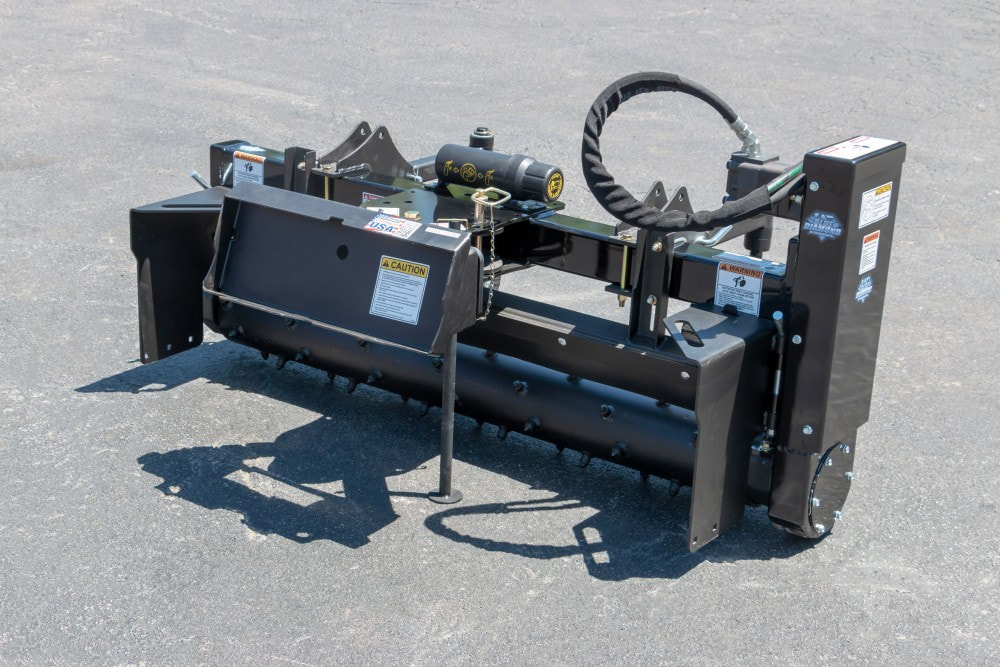

Heavy Duty Power Rake
- 7” diameter drum with 1.5” teeth

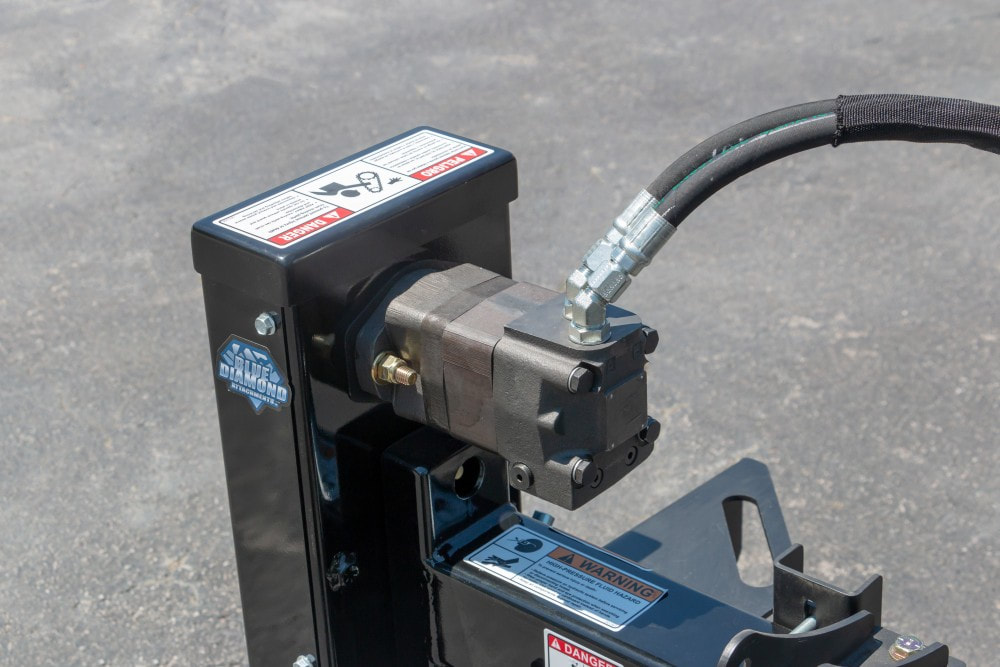

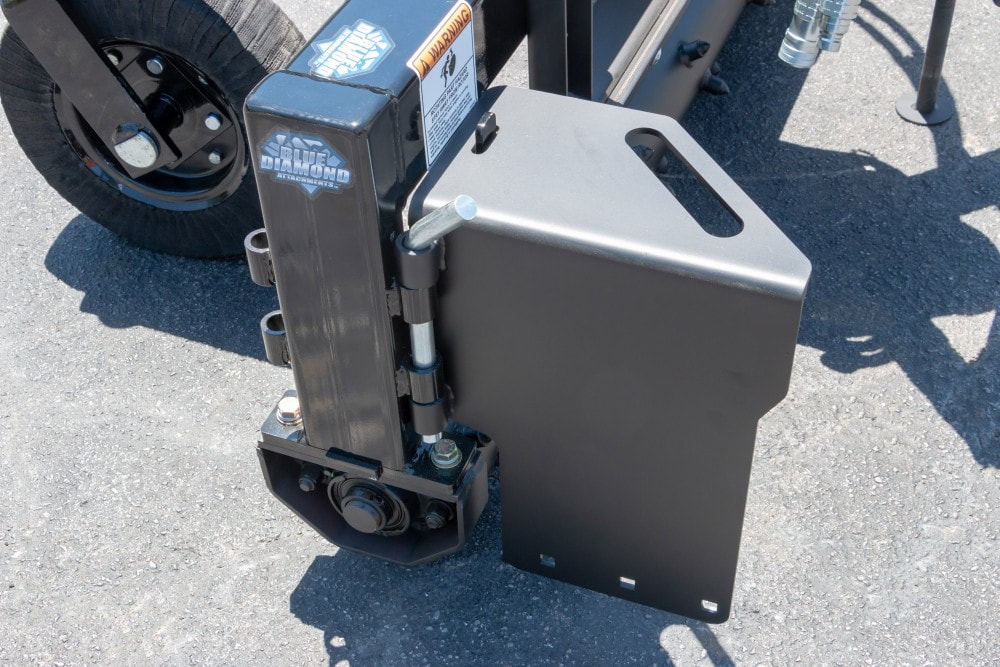

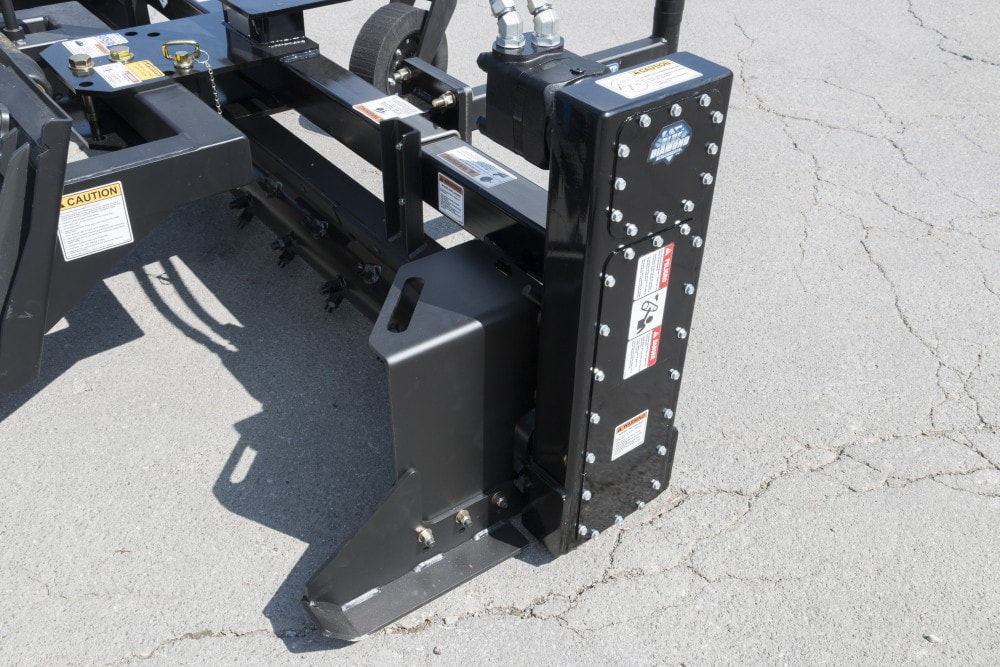

- Chain drive unit for increased torque
- Pre-lubricated chain for easy service

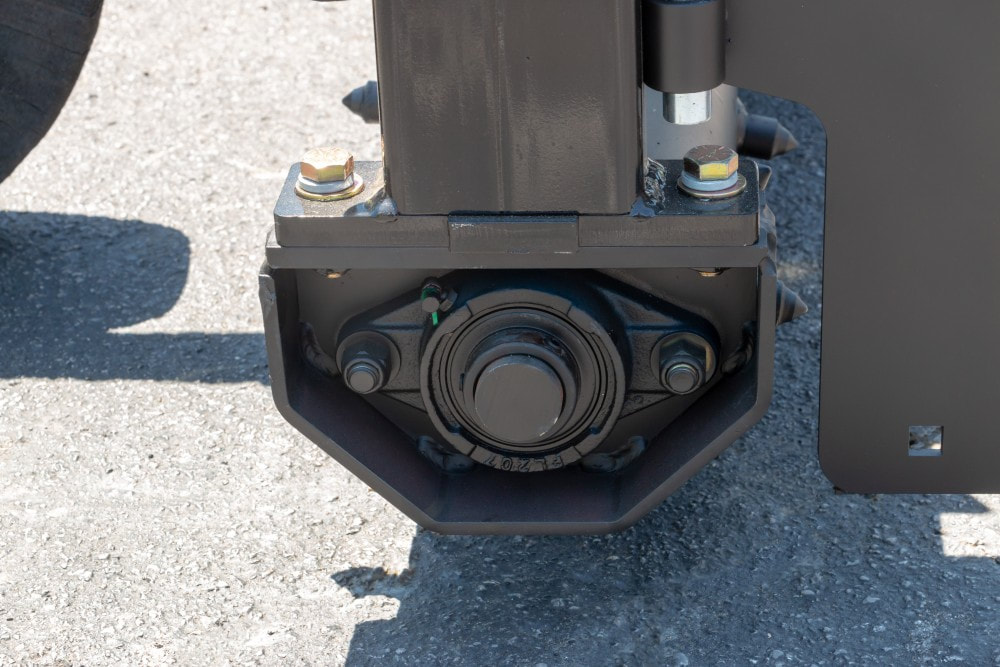

- Spindles on drum are 1 3/8” diameter in greaseable bearings
- Drum widths: 48”, 60” and 72”
- Overall width 9” more than drum width

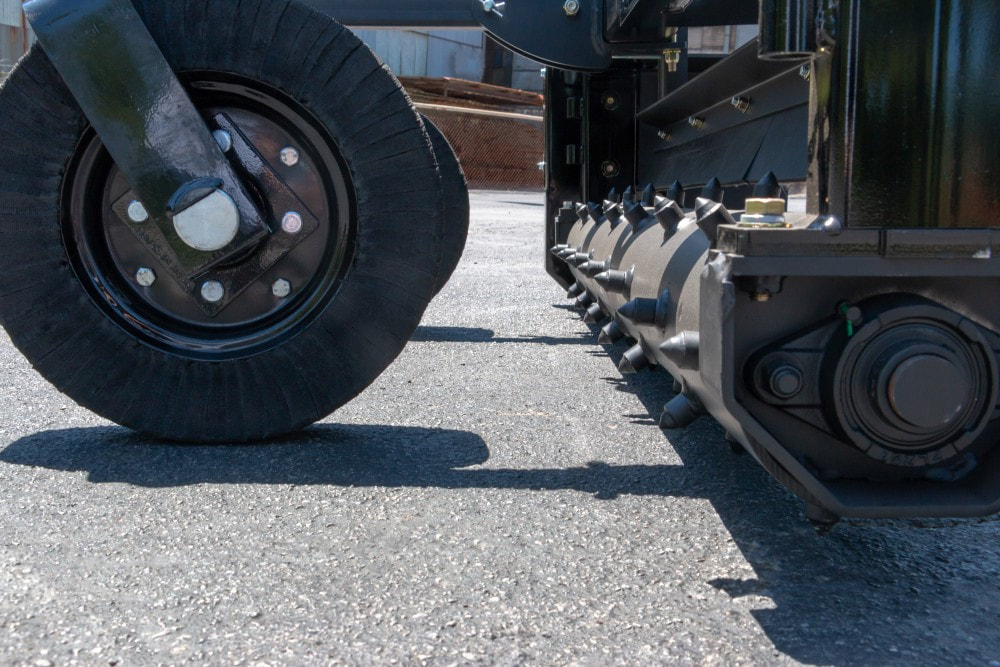

- 7/8” greaseable axles on wheels
- Airless tires

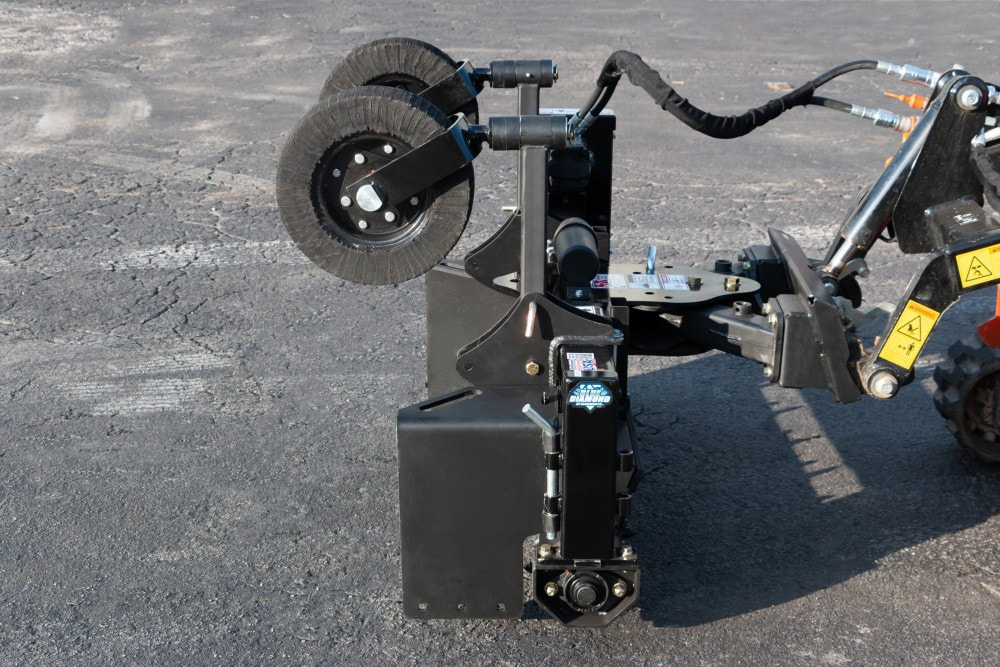

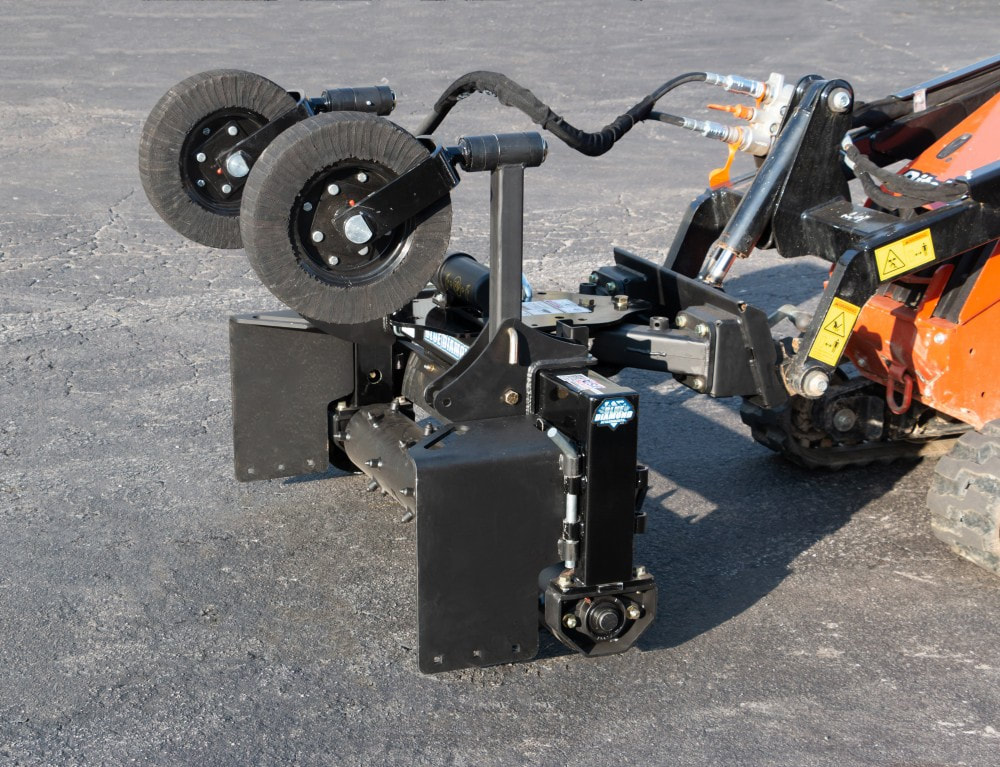

- Flip up wheels
- 1.25” spindles with adjustable height

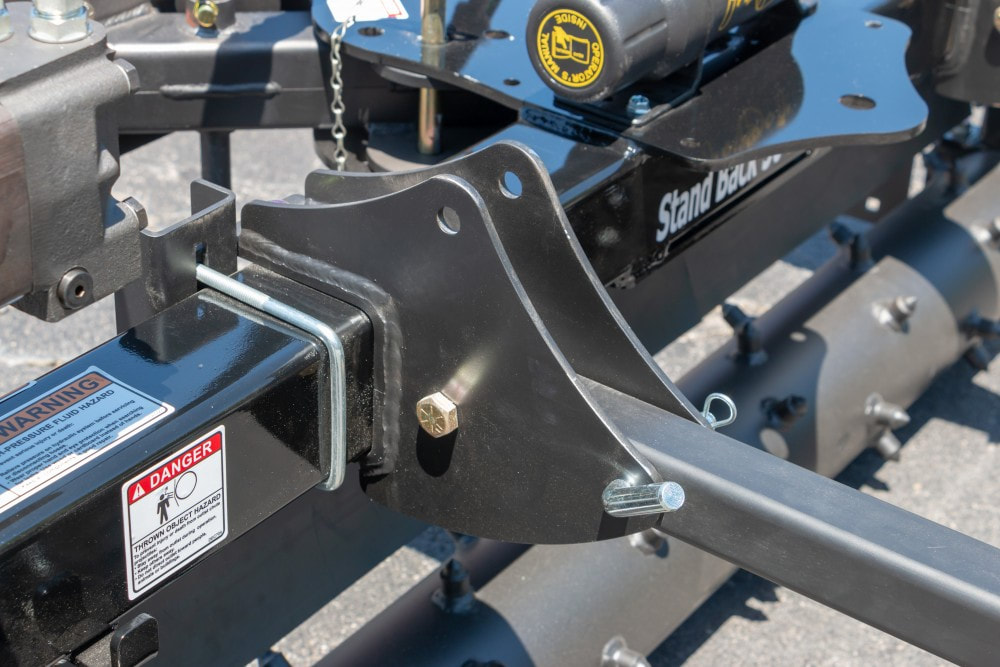

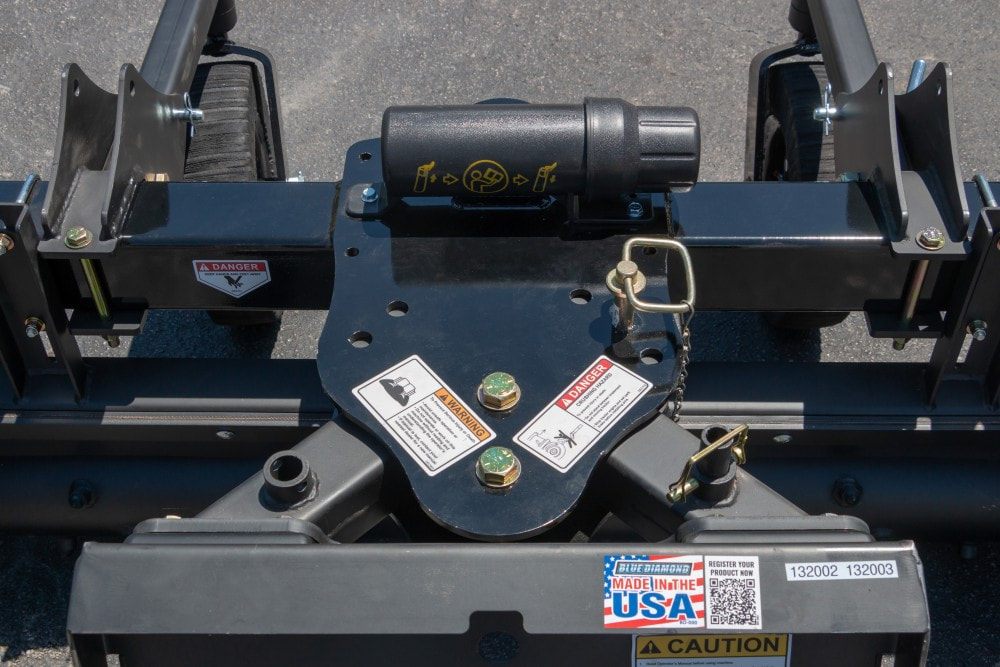

- Bolt-on mount

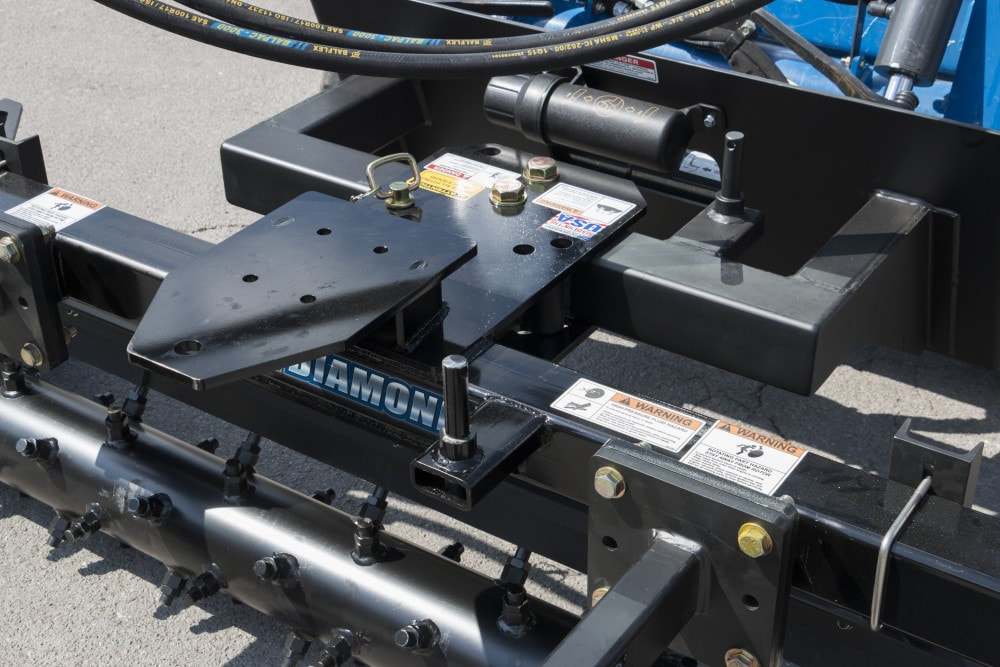

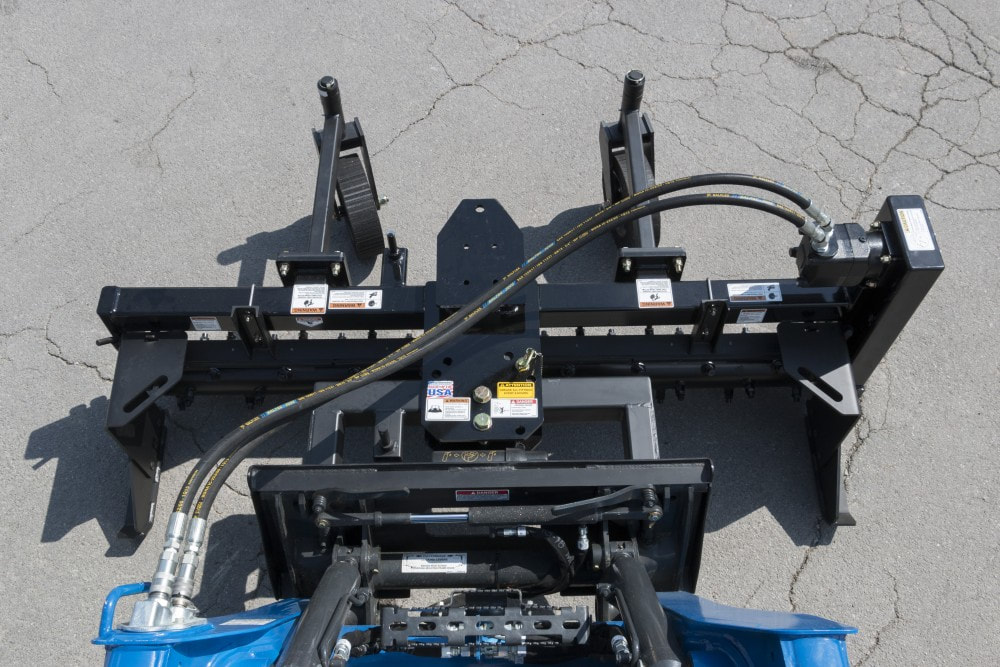

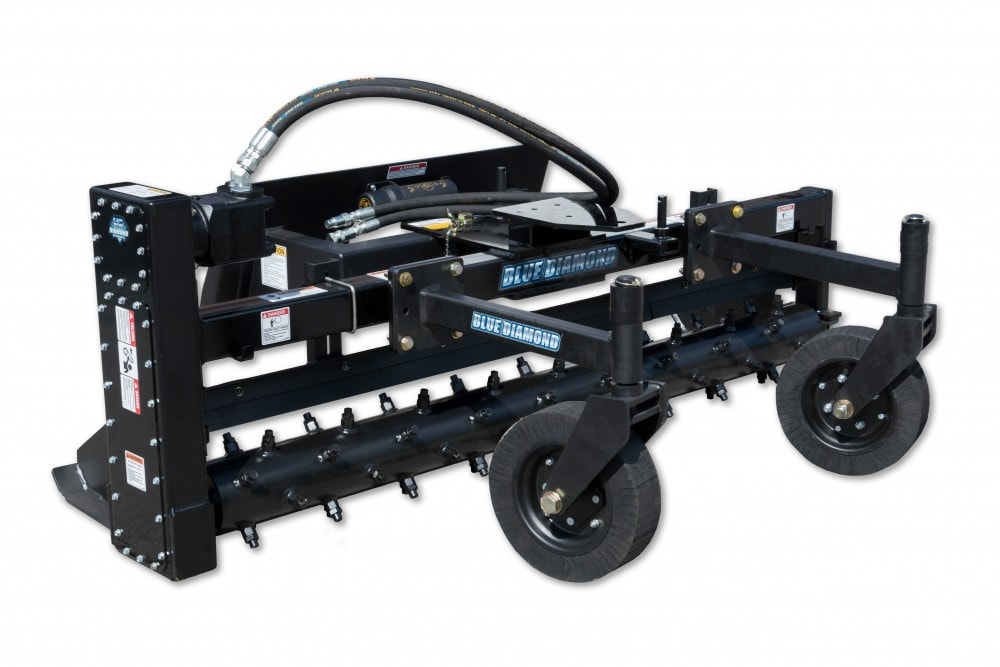

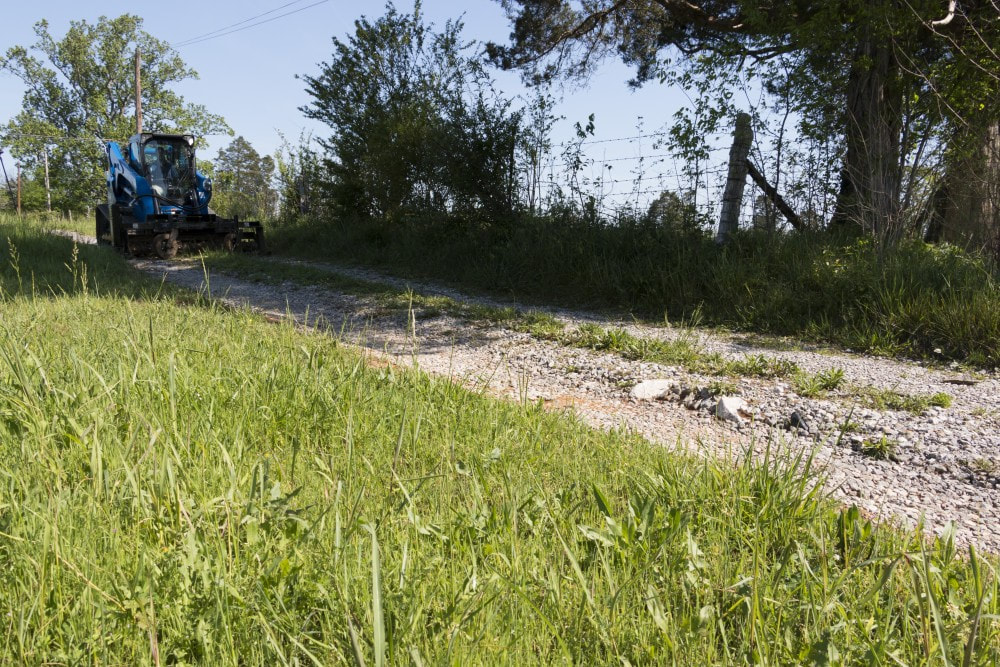

Severe Duty Power Rake

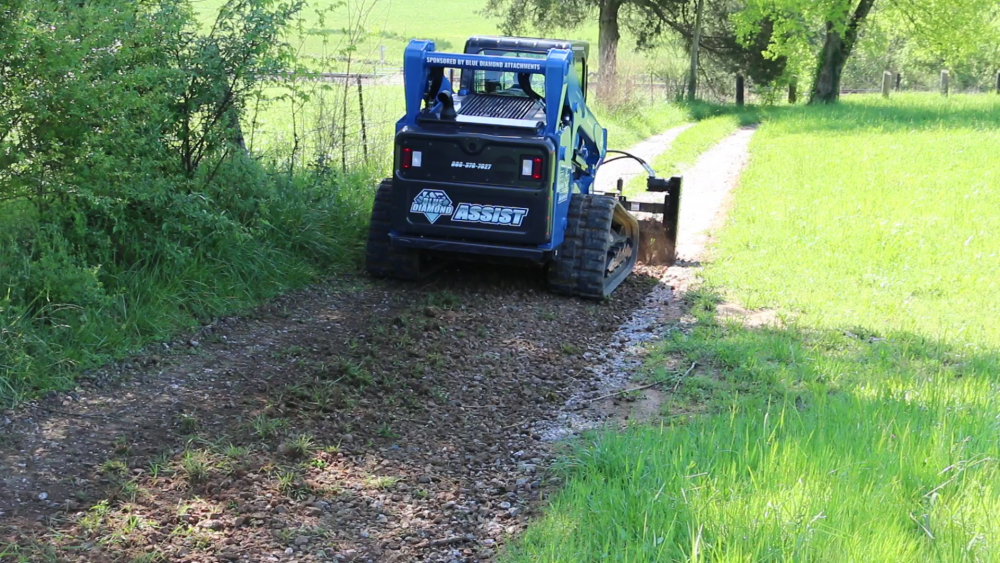

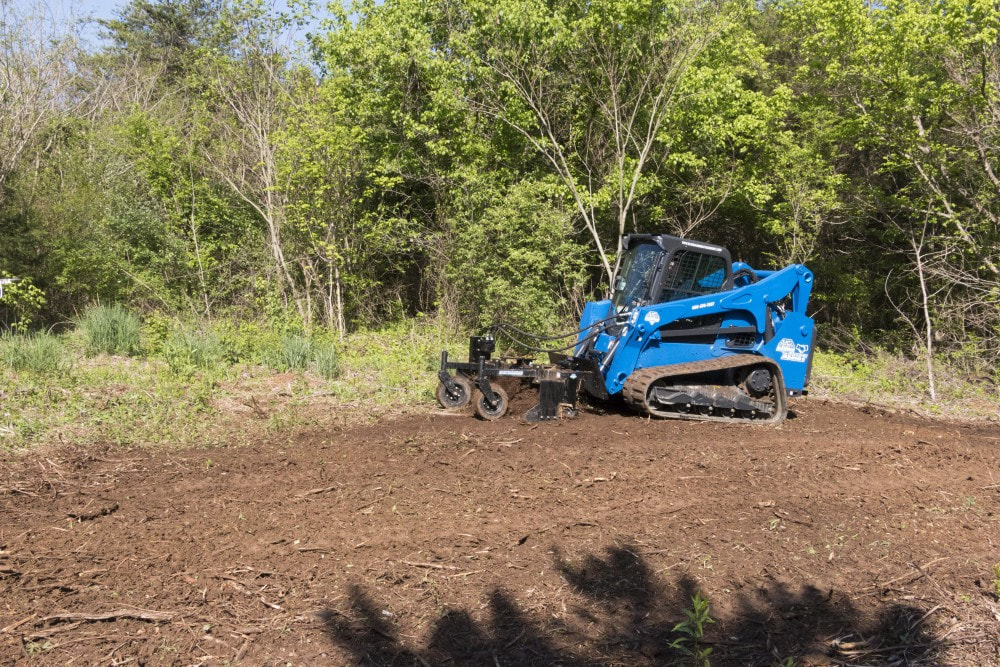

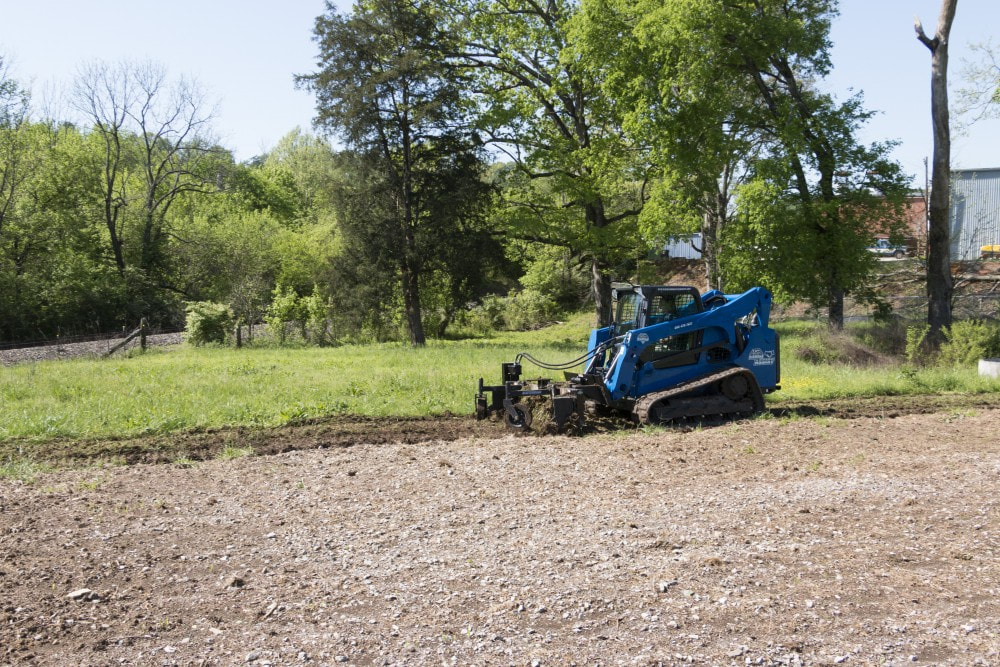

The Blue Diamond Power Rake is designed to power through jobs where others fail, and is set up for simple servicing. The massive 6000 series motor and optimal drum size produce maximum torque, and the motor is kept out of the way, maximizing usable width in tighter areas. Aggressive 2″ teeth are ideal for leaving a fresh seed bed with fewer passes.

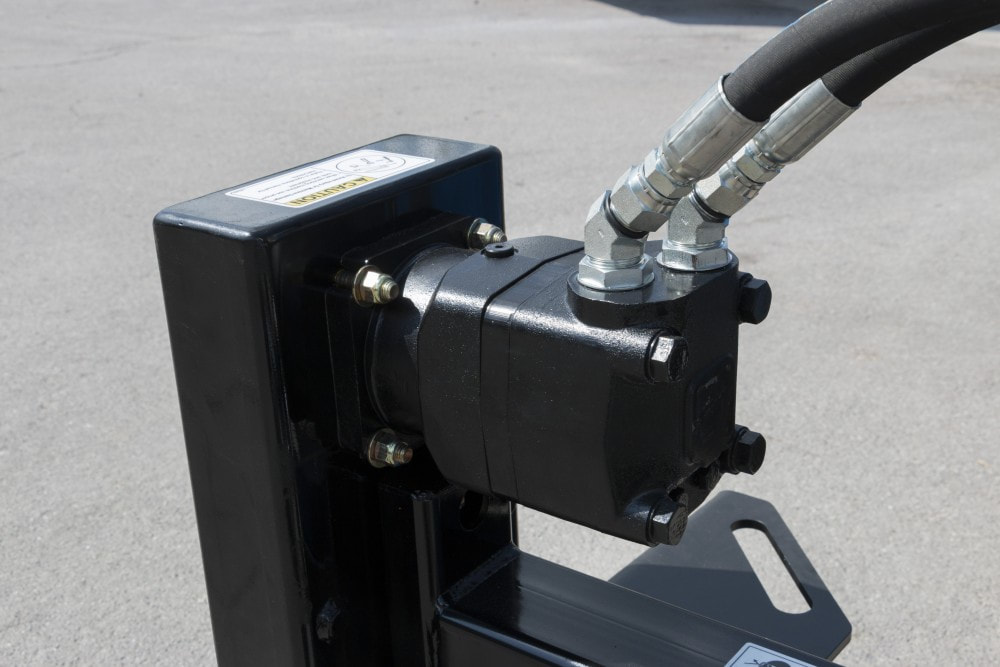

- 6000 series motor weighs twice what competitive models do, and has around 40% more torque.
- 4” x 4″ square tube frame.
- 18 – 26 GPM hydraulic flow, max 4000 PSI

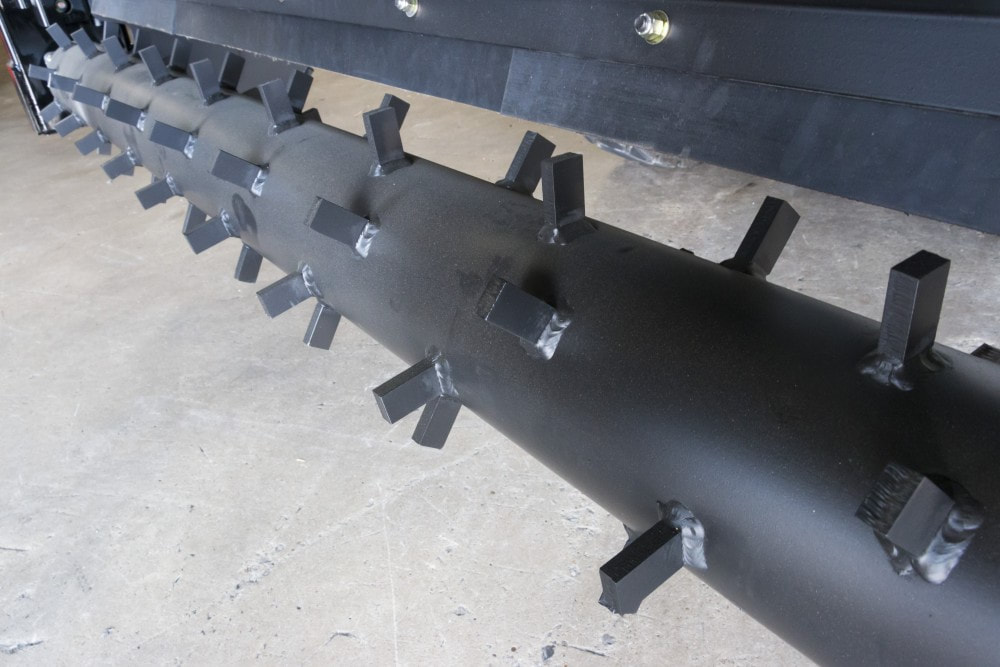

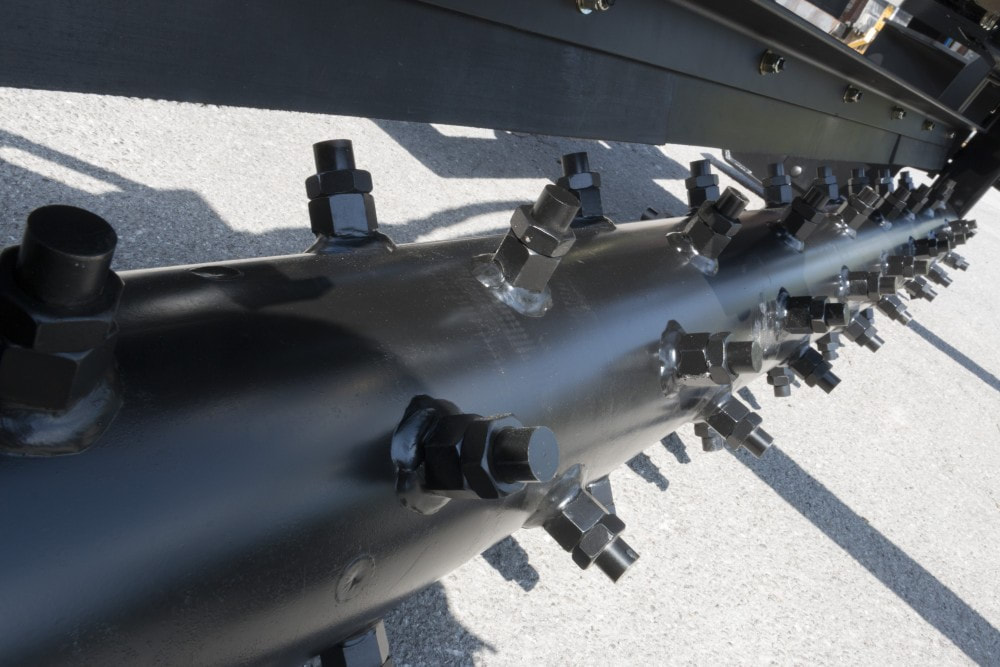

- Optional replaceable teeth versus fixed teeth that require welding to replace.

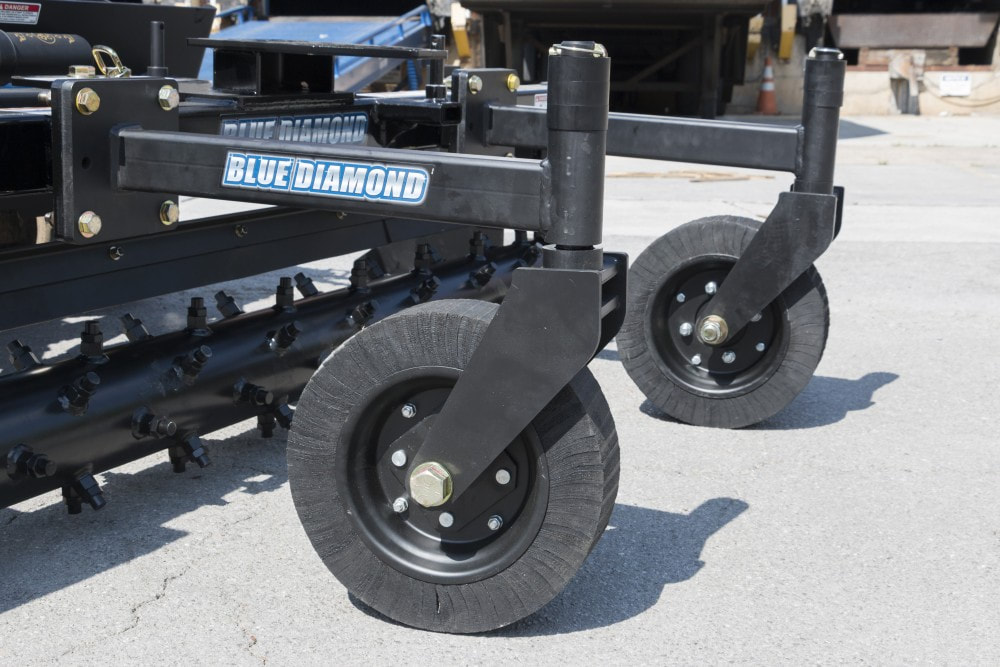

- 1.5” spindle on castors with spacers versus friction adjusters that work loose.
- Airless tires – no flats.
- 1” front wheel axles versus competitive ¾”.
- 1.5” motor shaft and high pressure seals.
- 5 position, 20 degree angle, manual or hydraulic.

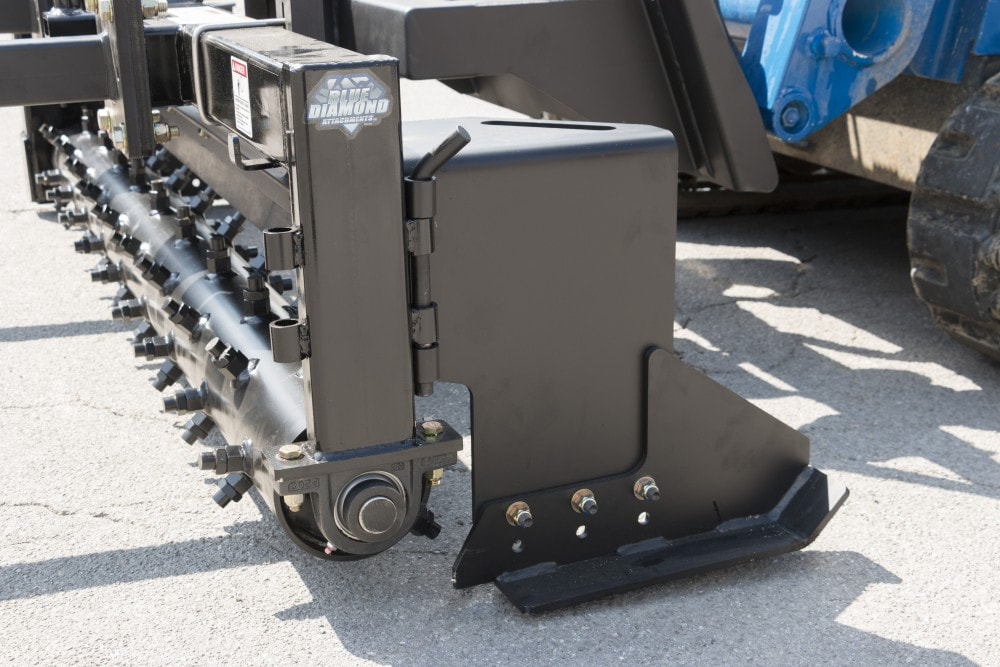

- Optional bolt-on skid shoes add 30% load capacity over side plates alone.
- 6 3/4” drum diameter, 10 3/4” including teeth.
- Replaceable teeth hardness is HRC 50.
- Double struts on the castors.
|
|
|
